AWWA C515 and C509 gate valves

Resilient seated iron for municipal water. Model RD is the everyday 2-1/2 through 12 inch C515. FD stretches to 16 inch. LD covers 18 through 36. HD fuses to PE. Series 45 carries UL/FM.

Metal Core Model RD AWWA C515 ductile iron gate valve

Model RD AWWA C515 ductile iron gate valve 2.5-12 inch

Model RD 2.5"-12"

AWWA C515 ductile iron. Stainless stem, serialized. Figure MCV-RD.

Model FD AWWA C515 ductile iron gate valve 2.5-16 inch

Model FD 2.5"-16"

C515 / C509 all ductile iron. Grooved and tapping options. Figure MCV-FD.

Model LD large diameter gate valve 18-36 inch

Model LD 18"-36"

Large diameter C515 with F16 actuator pad. Figure MCV-LD.

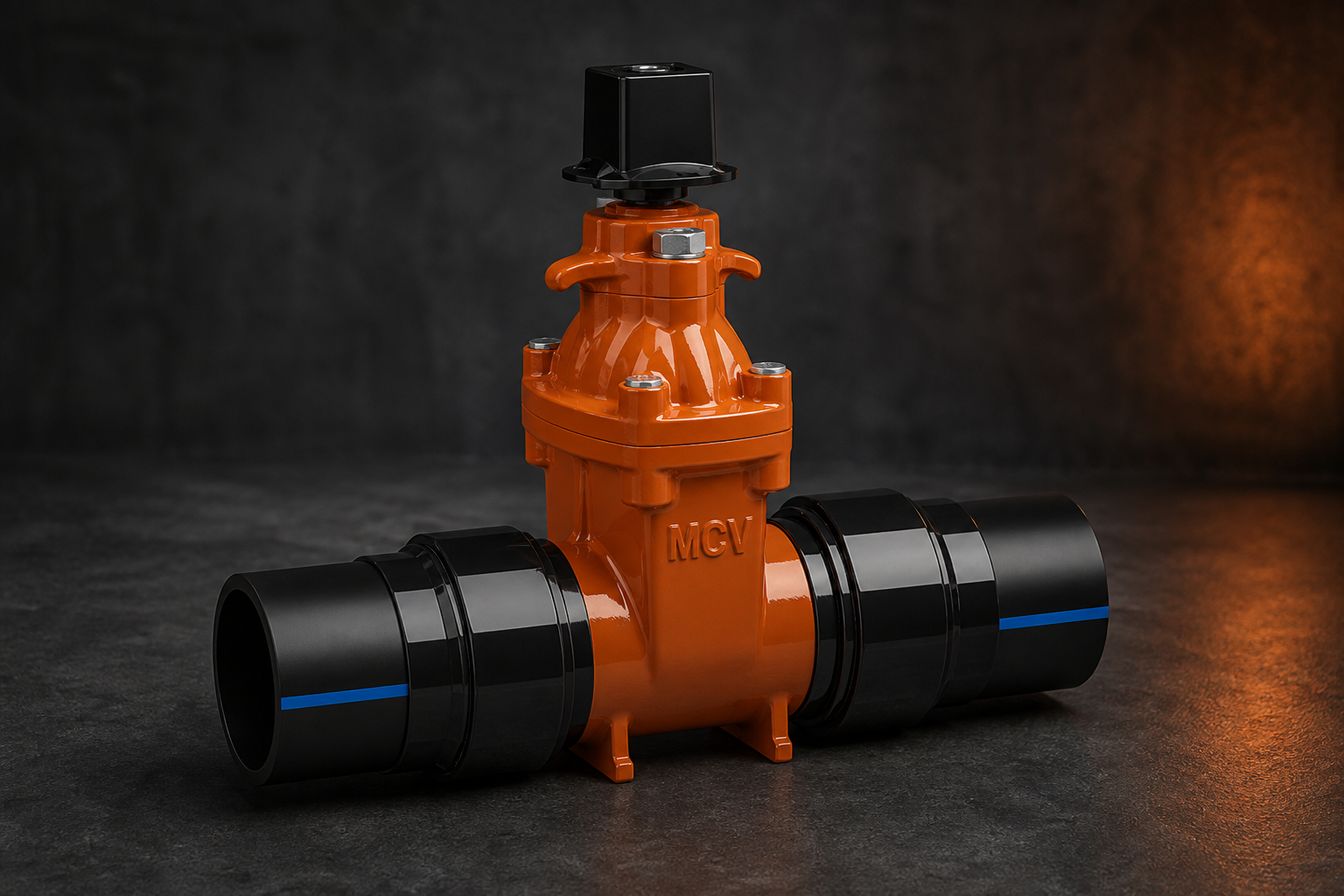

Model HD gate valve with HDPE fusible ends

Model HD HDPE ends

C515 gate with factory PE ends for fusion. Figure MCV-HD.

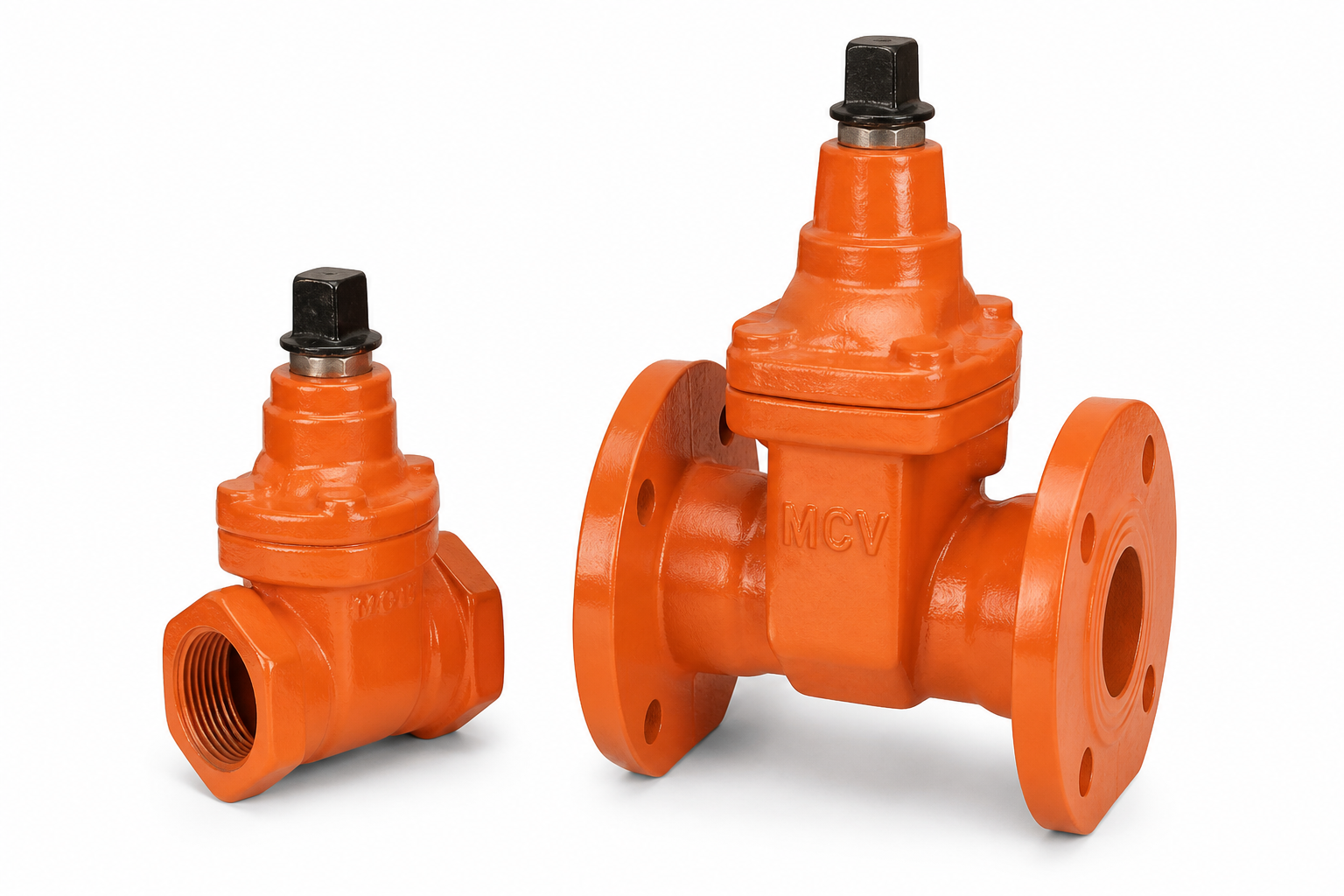

Series 03 1"-2"

Service, curb stop, and irrigation. Figure MCV-03.

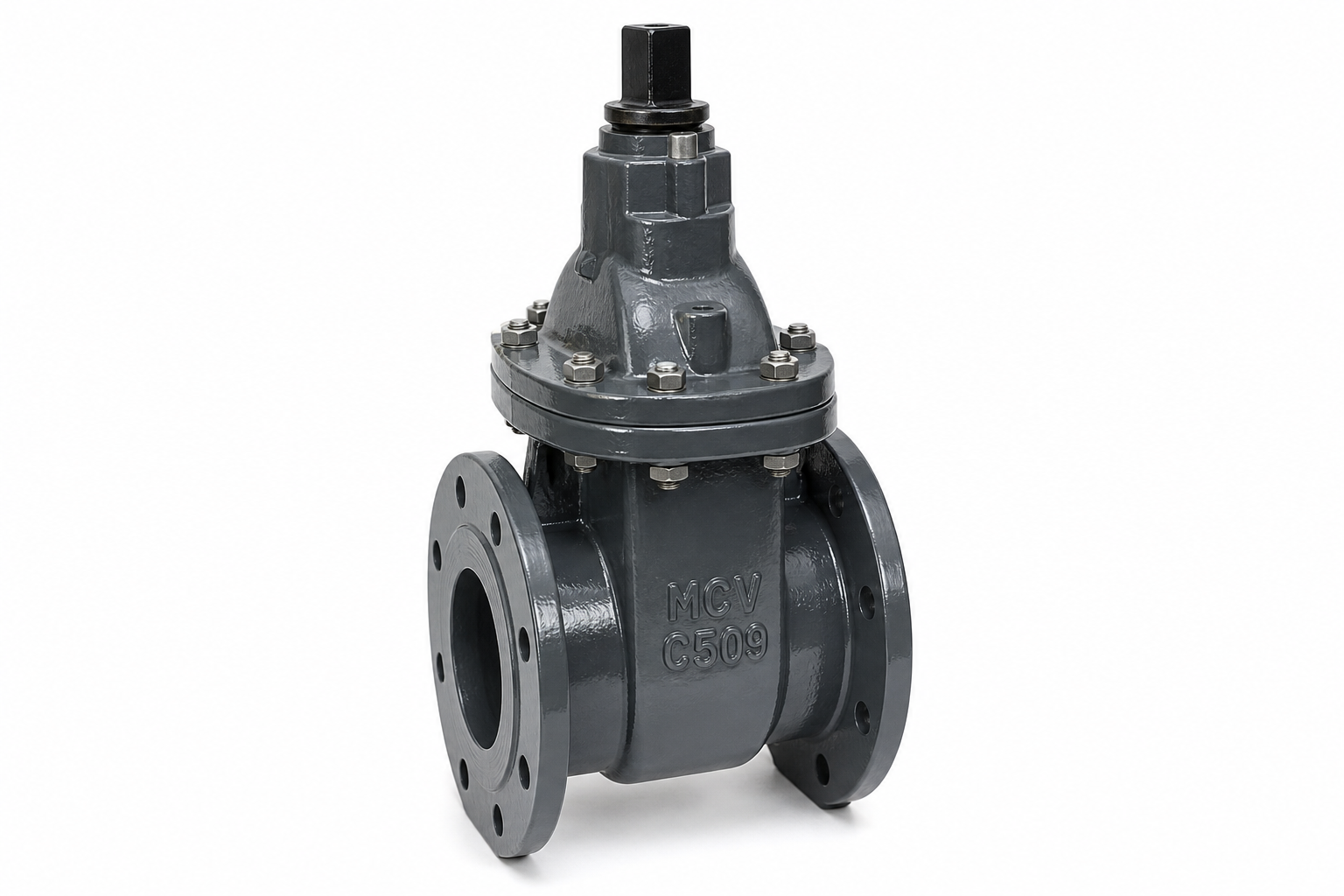

Series 25 AWWA C509 gray iron gate valve

Series 25 C509

Gray iron where the spec still names C509. Figure MCV-25.

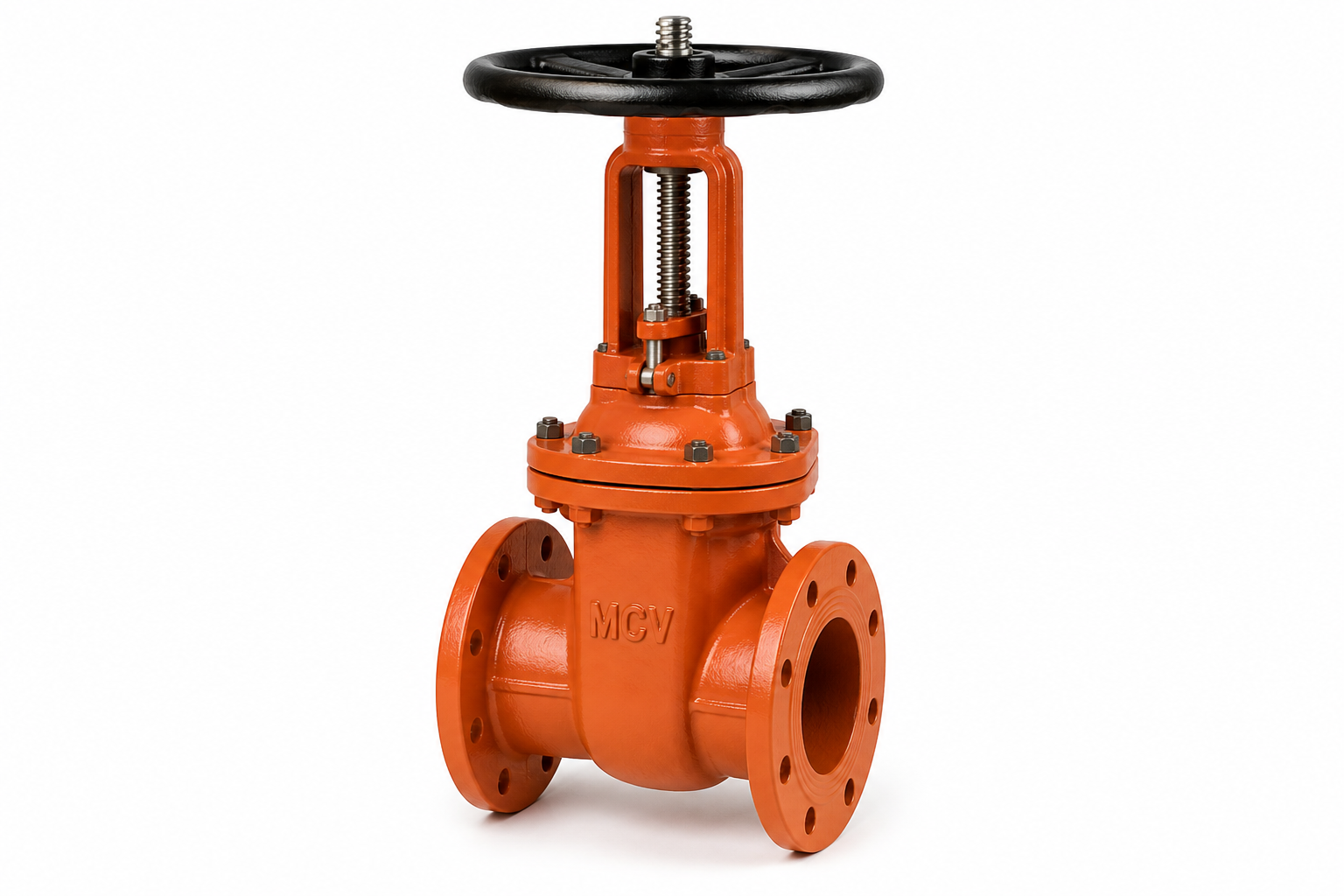

Series 45 UL/FM

NRS, OS&Y, or PIV fire gates. Figure MCV-45.

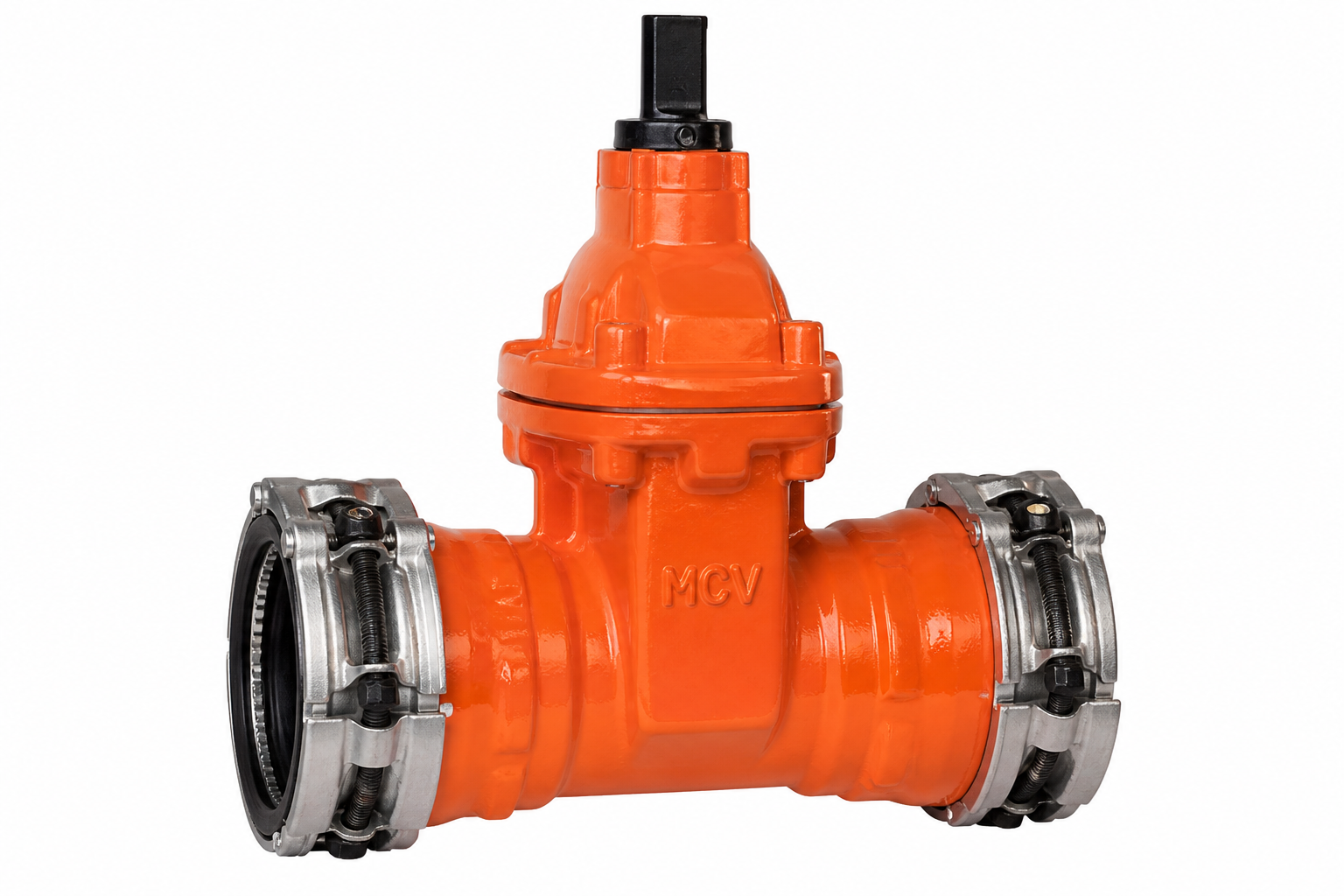

Series 65 Model RD with HYMAX GRIP couplings

Series 65 HYMAX GRIP

Model RD with factory HYMAX couplings. Figure MCV-65.

Series 557X bypass

Bypass kits for 18 through 36 inch gates. Figure MCV-557X.
